Angle Three Work Sides

We chat：3dweldingtableEmail：info@shwgec.com

Product Details

28 System-3 Sided Locating Angle & 3 Sided Locating Angle AL Alloy

Description

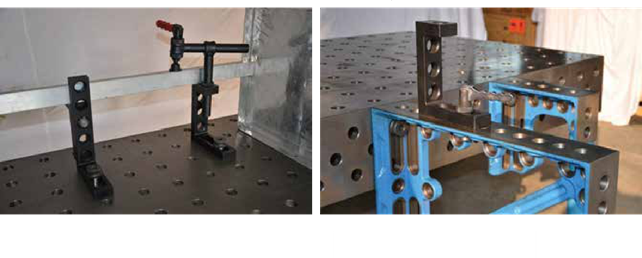

-3 sided locating and clamping.
- Many located ways by combining the bores and slot.
- Can be a height adjustable surface by clamping the oblong slot.
- Can be a table extension for light workpieces.
- Precision scales on one side of the slot.
- Surface hardening treatment.
- Option: Stainless steel, Al alloy, Super hardened tool steel, HRC60.

- IT7 high precision production.

- Material: High strength aluminum alloy.
60% weight reduction.
- Light and convenient for user.
- Multiple adjustment by combining the bores and slot.
- Precision scales as required.

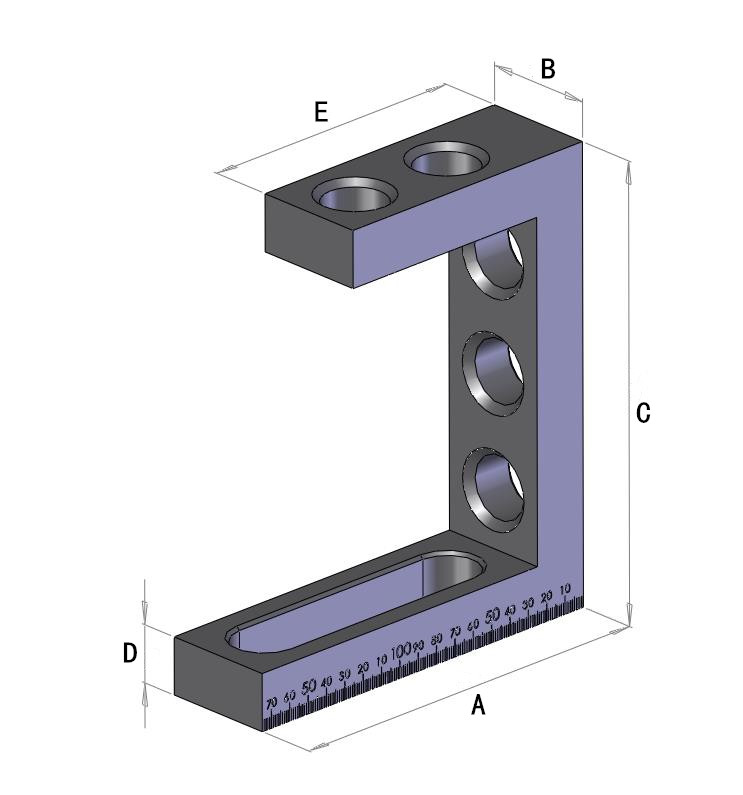

Description	A×B×C×D×E	Kg	Item no.

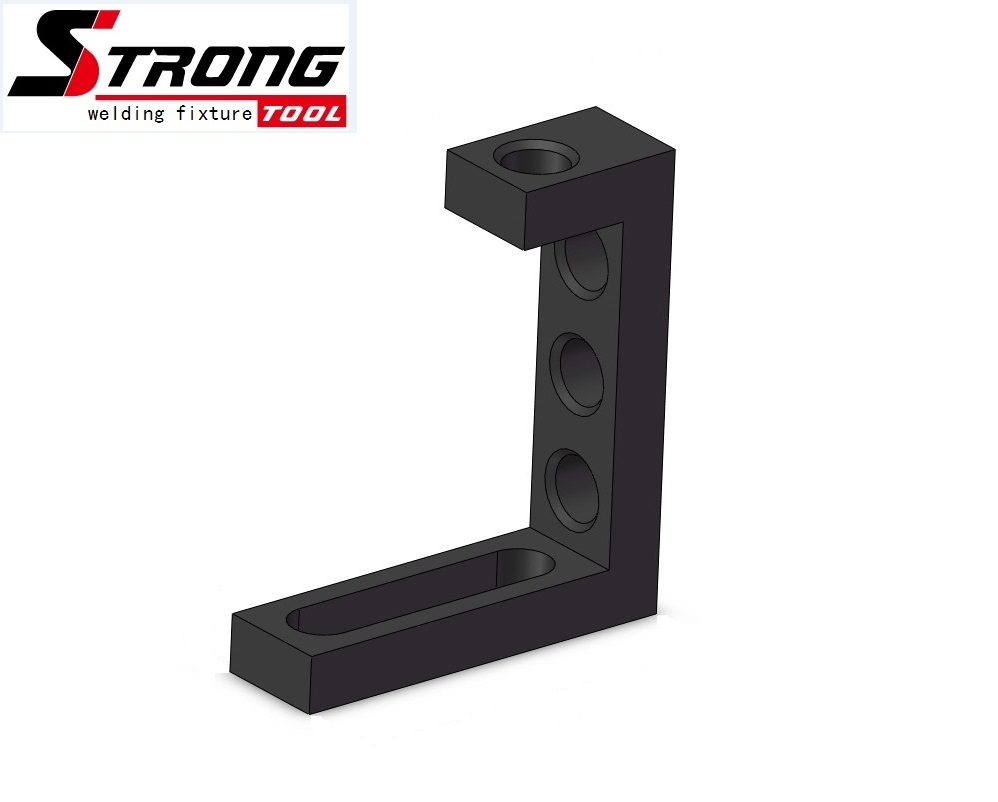

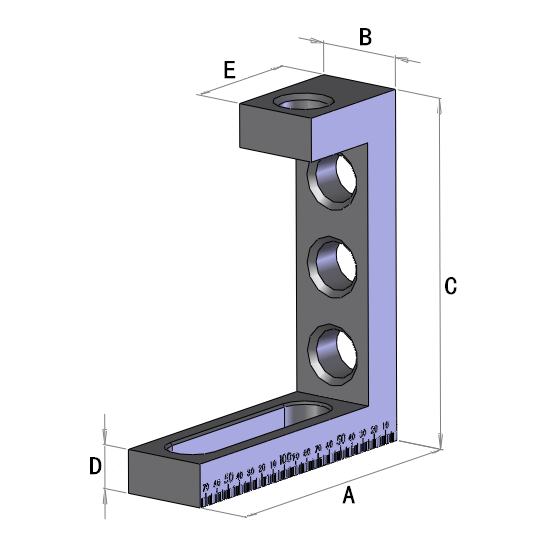

Sided Angle L200, Top one bore, with scale and hardening	175×50×200×25×75	2.7	28-30200-121

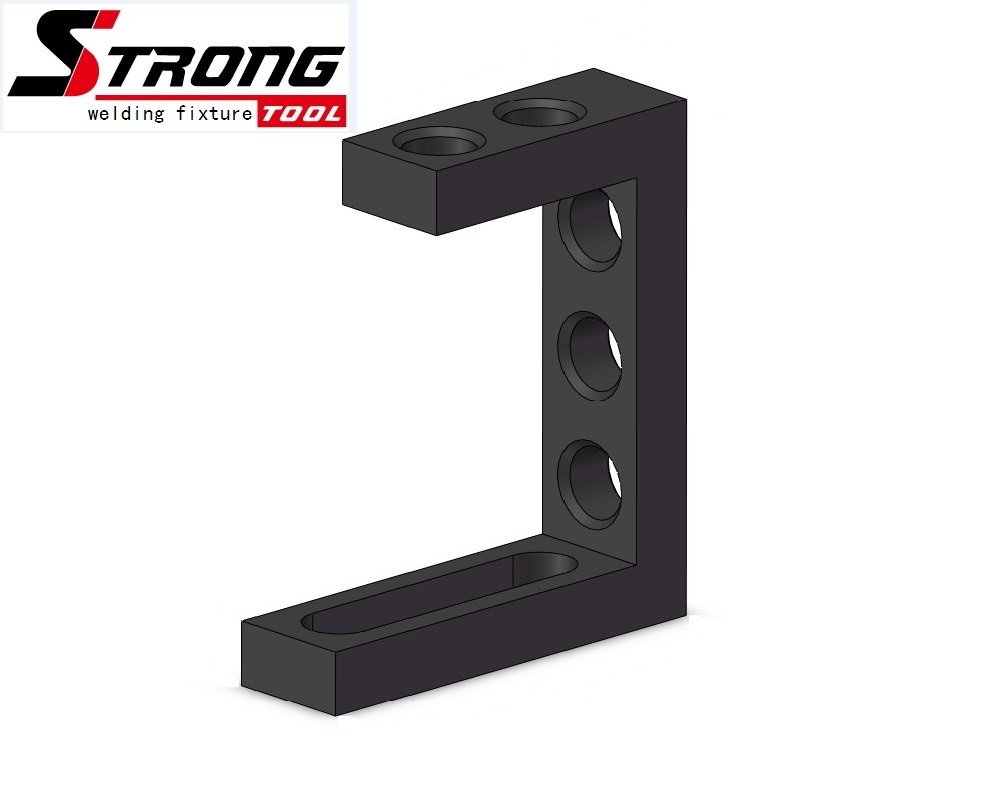

Sided Angle L200, Top two bores, with scale and hardening	175×50×200×25×125	2.9	28-30200-122

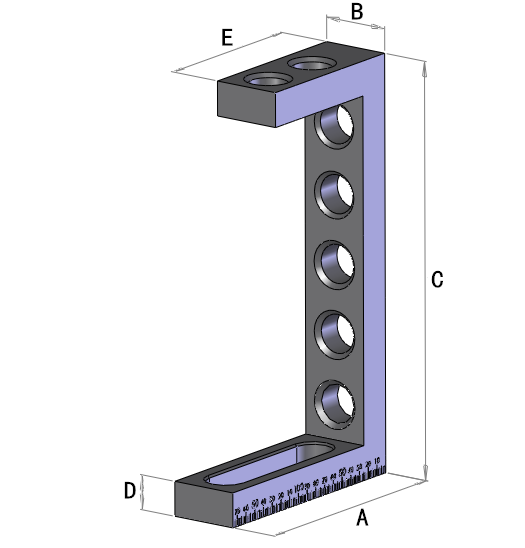

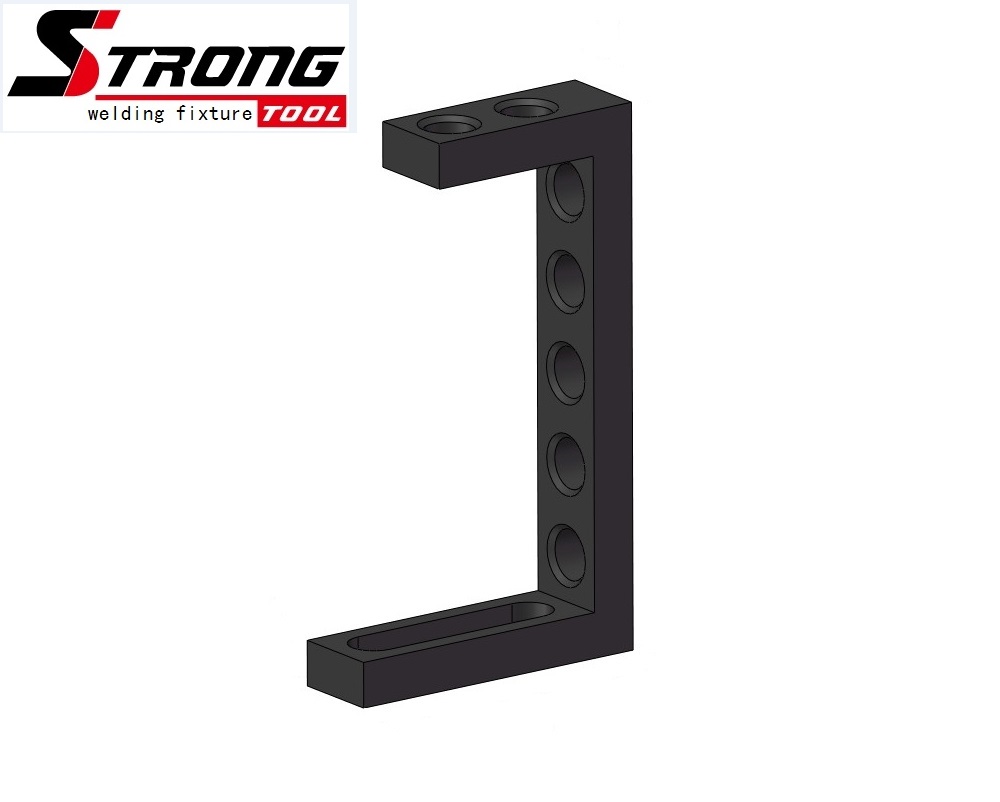

Sided Angle L300, Top two bores, with scale and hardening	225×50×300×25×125	3.8	28-30300-122

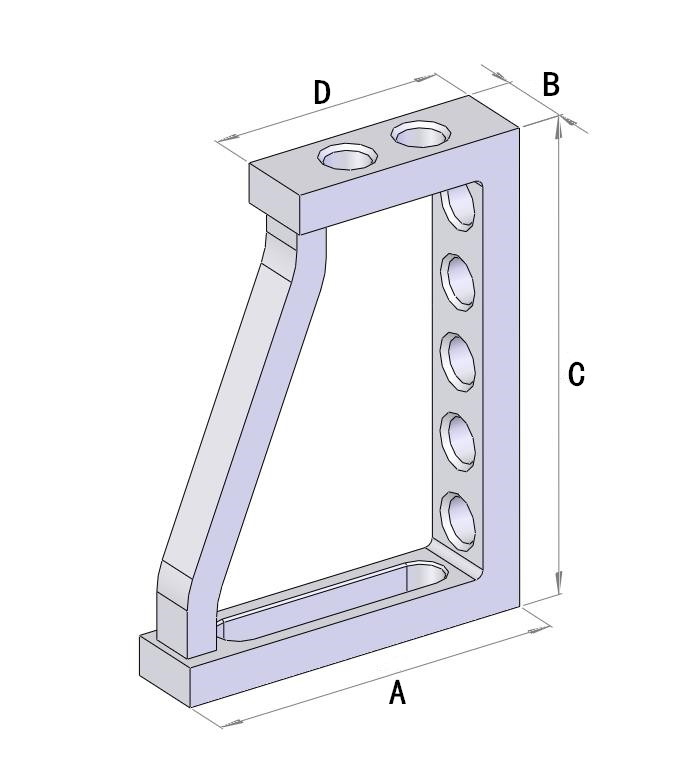

Sided Locating Angle Al L300	250×50×300×150	2	28-30300-045
