Product Details
28 System-Connection Bolt

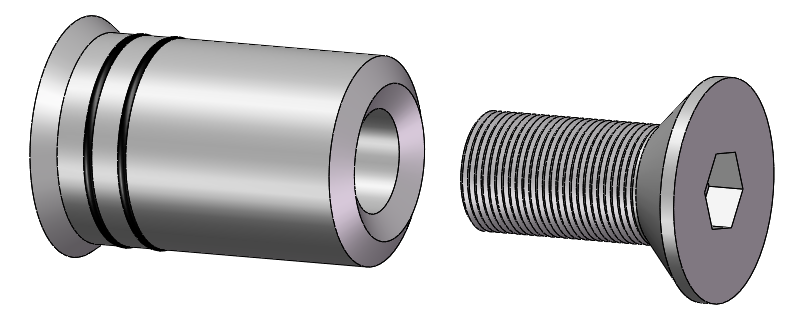

 |  | Description - Both ends have countersunk bolt heads locked. - Be used for long term connection. - Use for connect table to table / block and stop for system bores. - Clamp by hex wrench SW10 | |
 |  |  |

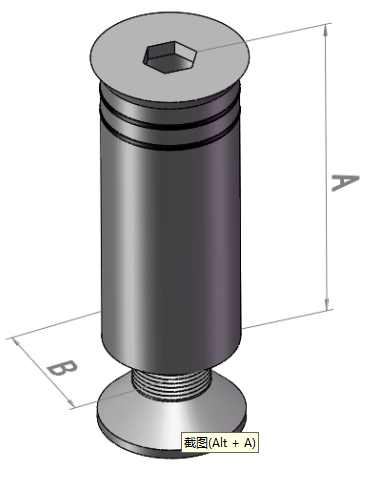

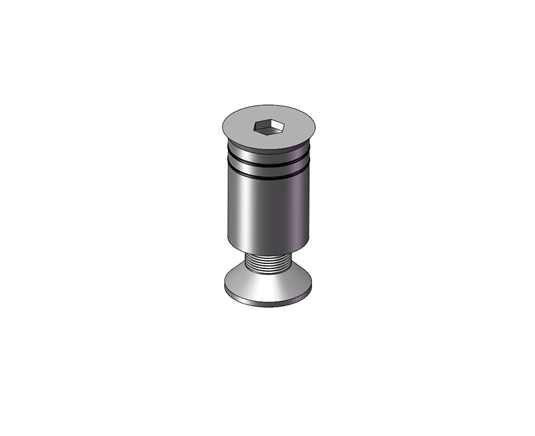

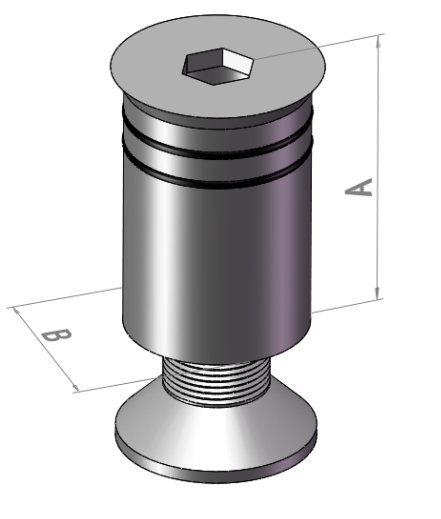

Description | A×ΦB | Kg | Item no. |
Connection Bolt short | 35.5×28 | 0.18 | 28-60003-000 |
Connection Bolt long | 45×28 | 0.26 | 28-60003-002 |

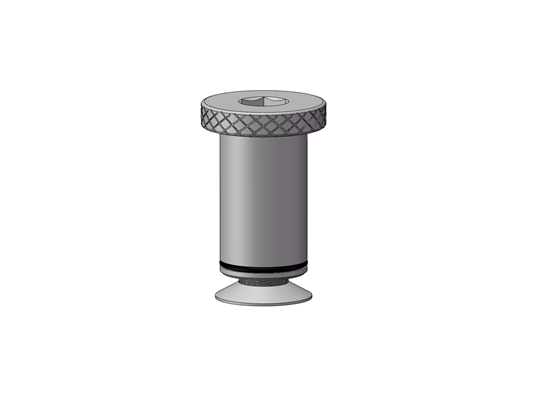

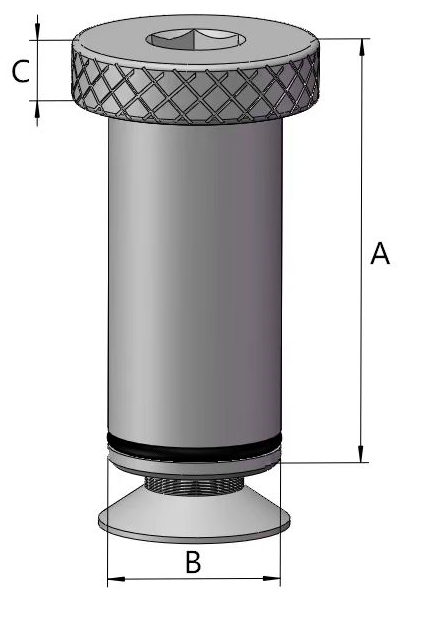

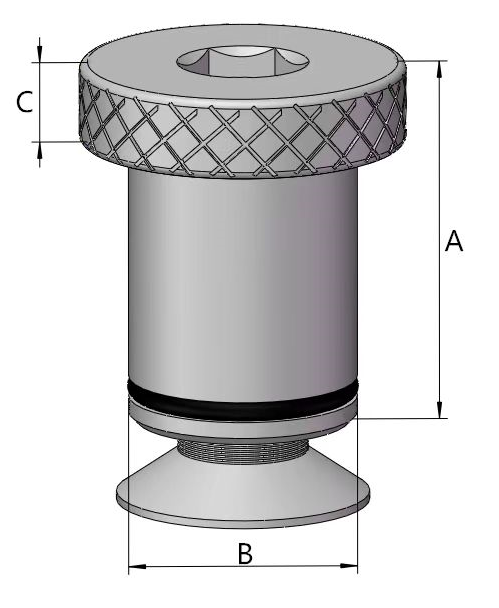

Description | A×ΦB×C | Kg | Item no. |
Connection bolt/Short | 35×28×10 | 0.28 | 28-60003-005 |
Connection bolt/Long | 60×28×10 | 0.35 | 28-60003-003 |
