3 Dimension Table

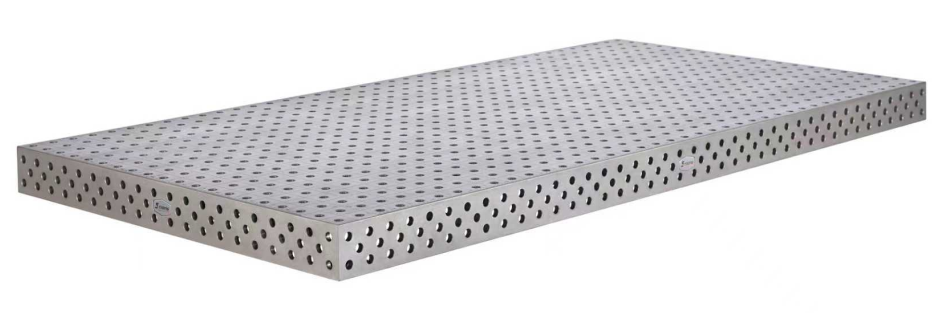

16 System 3D Welding Table

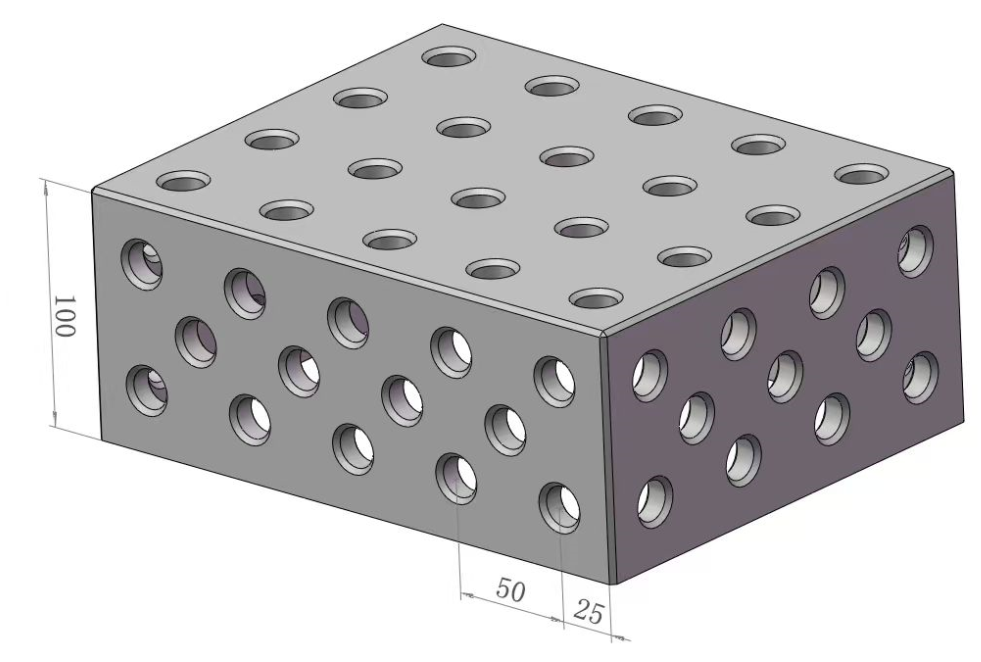

The 3D welding table is arranged with grid holes 50x50mm. The combination of grid holes and a positioning stop forms 12.5mm dimension chain, reliably determining the required dimensions of the workpiece.

Material：High-quality alloy steel with surface hardening treatment, Alloy tool steel, Stainless Steel.

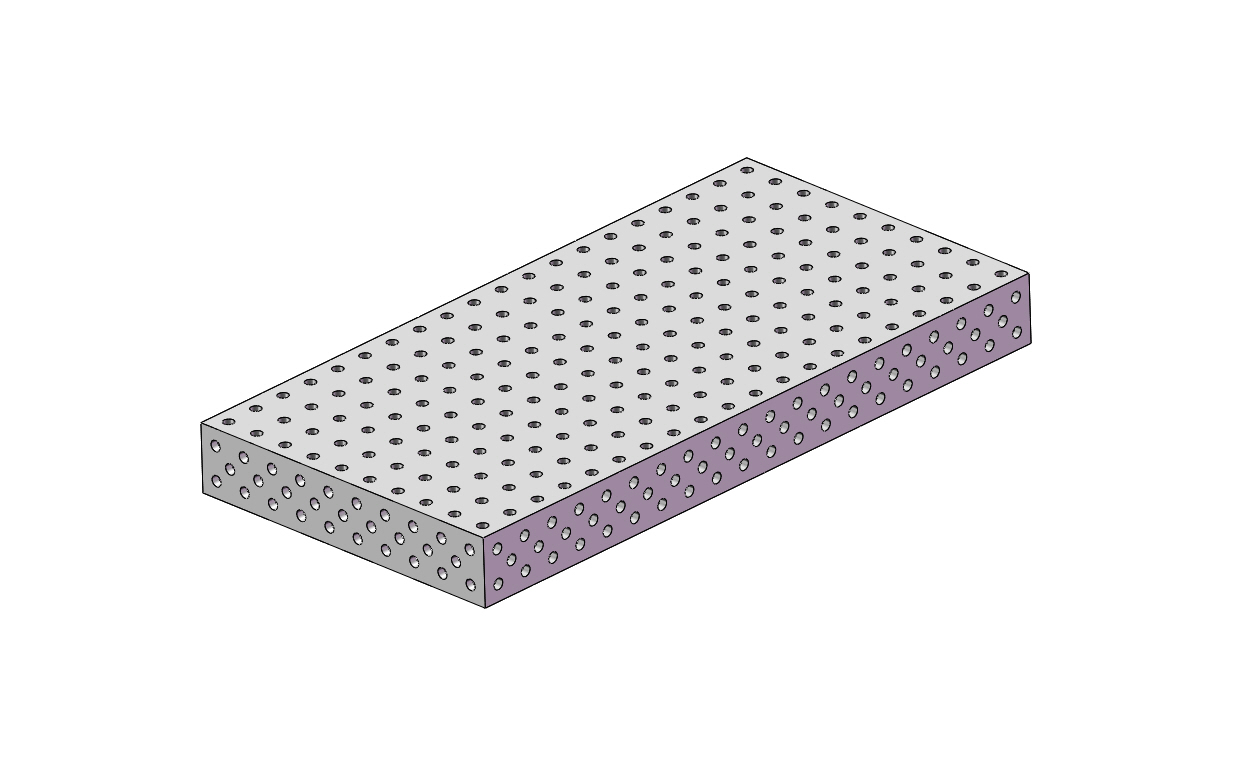

Common welding table sizes:

1000x500x100

1000x1000x100

1200x1200x100

1500x1000x100

1500x1500x100

2000x1000x100

2400x1200x100

3000x1500x100

Custom specifications can be made according to customer requirements.

Description

- Mainly used on a positioner of a robot cell.

- 9 sides for clamp, the fixturing are the same as the 3D table.

- More dimensions on request.

- Connection size of the positioner is needed before order.

- Option:surface hardened.

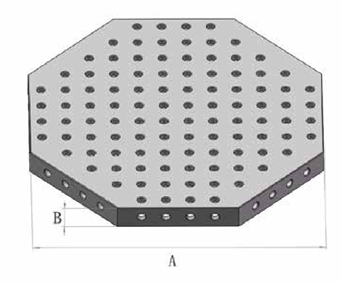

Common Octagonal Platform sizes:

SW 600x100

SW 800x100

SW 1000x100

SW 1200x100
