3D Module Welding Fixture


As a company with 25 years of research and practical experience, We specialize on providing


you with high-quality and reliable three-dimensional flexible tooling fixtures and solutions. Our


systems are designed to enhance productivity, precision, and adaptability across diverse


welding, assembling and measuring applications, ensuring optimal performance and service life


in even the most demanding industrial environments.






Optimization Design

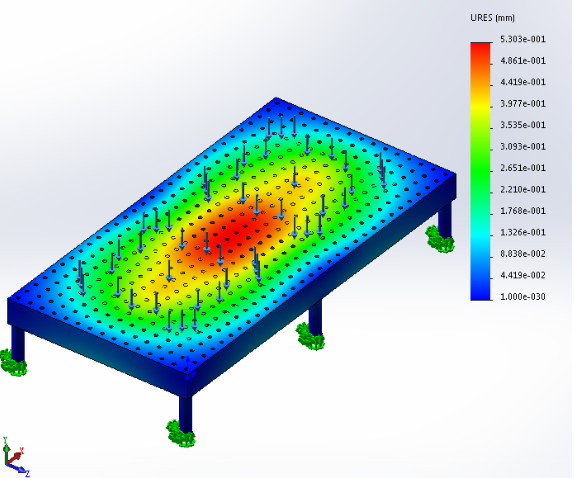

All kinds of 3D tables have been optimized in design and simulation tests, which is a guarantee

for users to use them with confidence.

The precision loss over a period of three years is less than 20%.

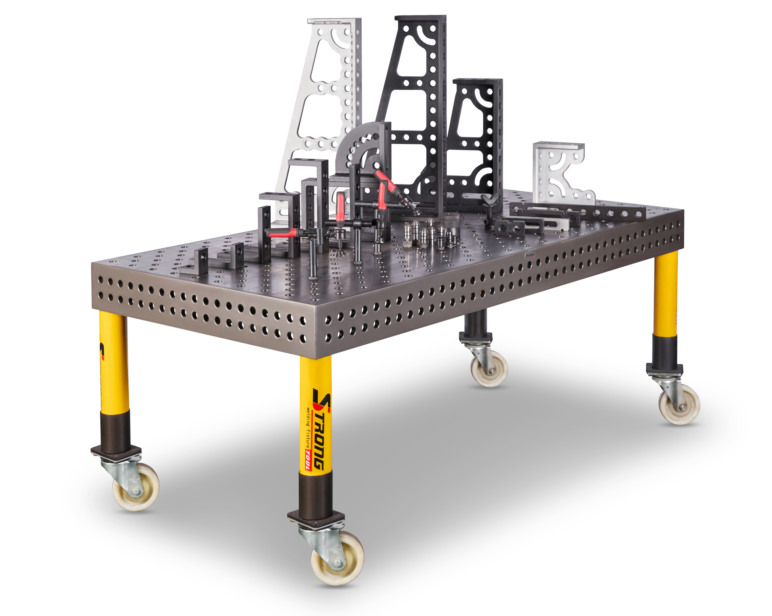

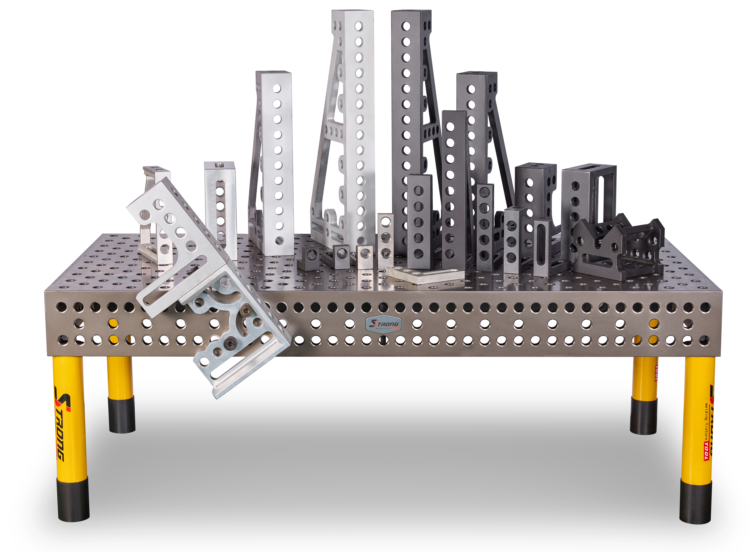

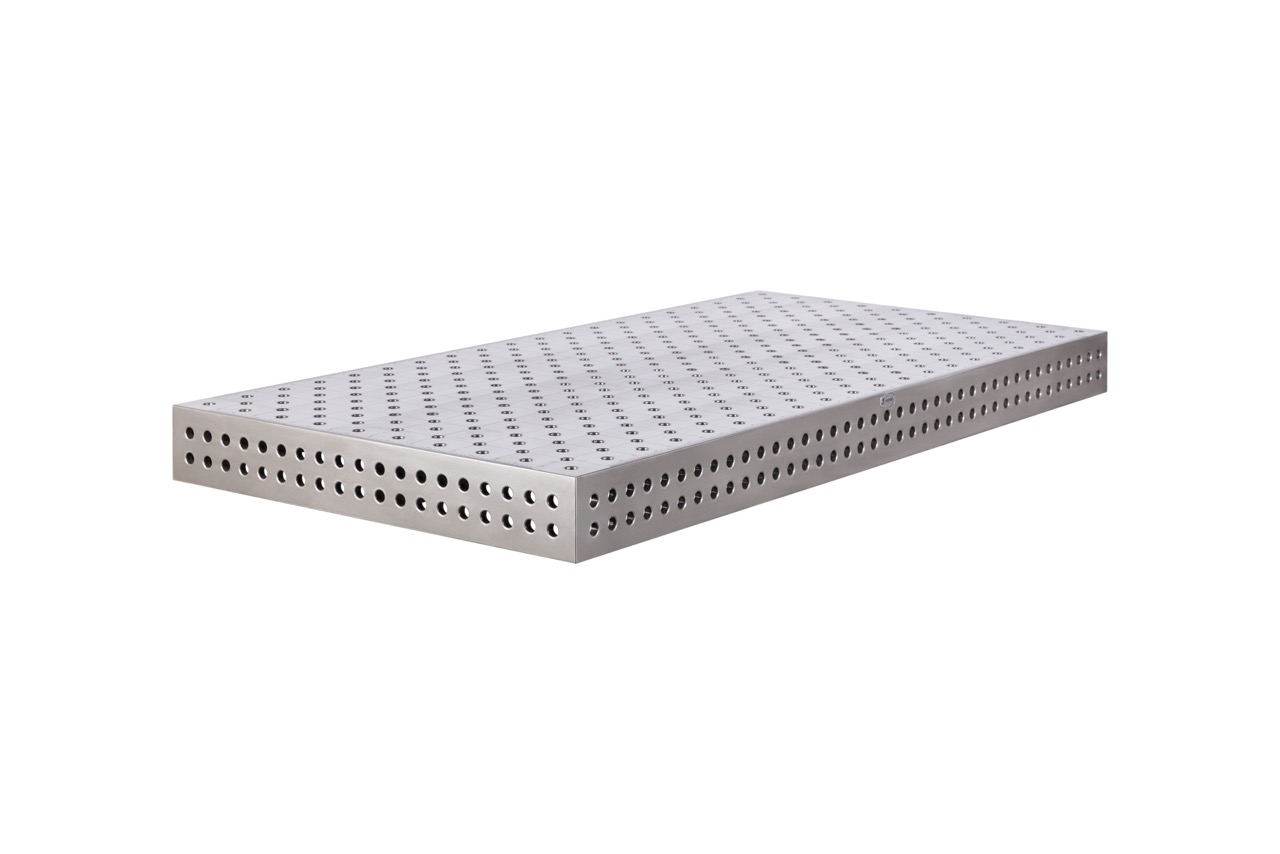

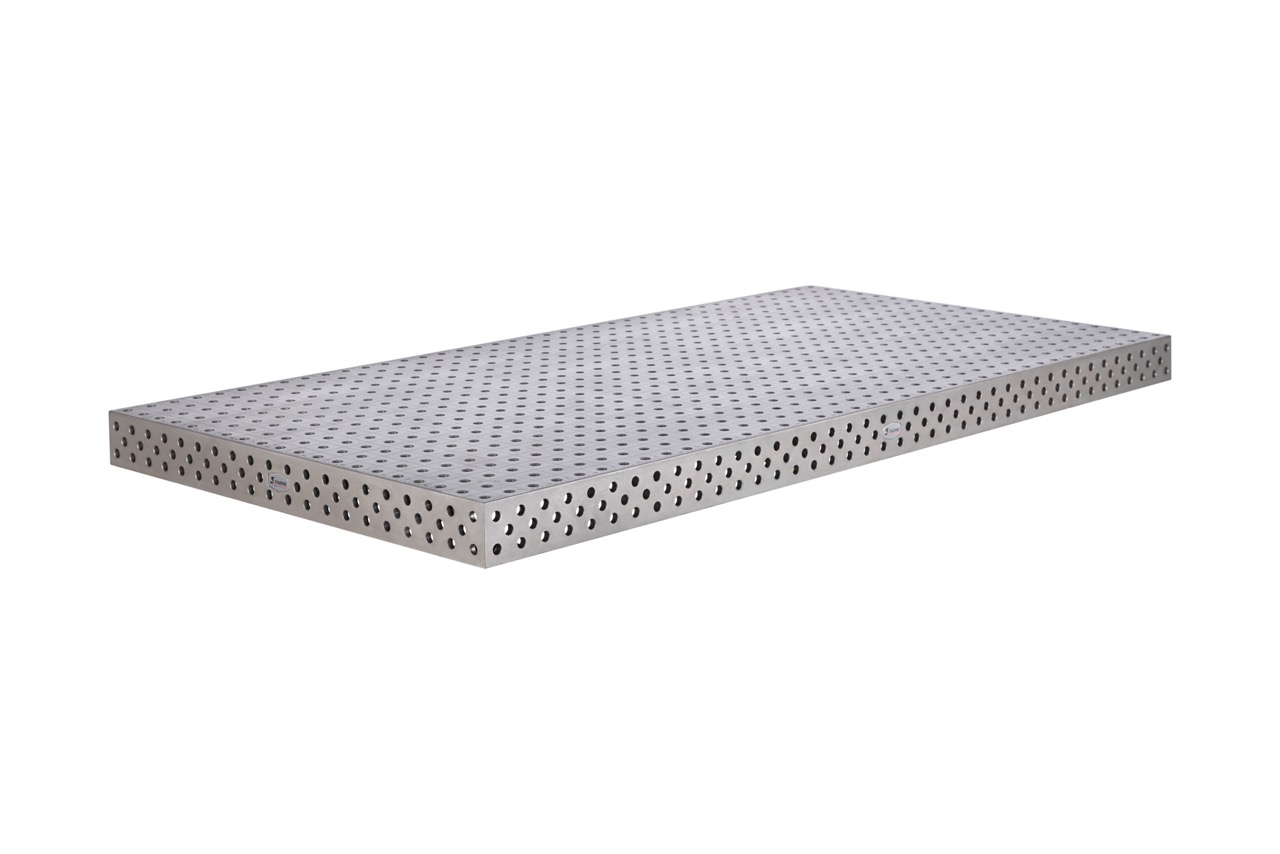

图片1.png     图片2.png





Versatile Modular Architecture




Three series (28, 22, 16) catering to large, medium, and small workpieces.



Interchangeable components enable rapid reconfiguration for dynamic production needs.



Reduce downtime with on-demand assembly/disassembly capabilities.






Superior Material Performance




3D welding tables made of alloy tool steel maintains high mechanical strength properties even

under high-temperature working conditions, and is also resistant to corrosion and wear.



The maximum hardness can reach: HRC60



Lifespan: 5 times longer than standard materials

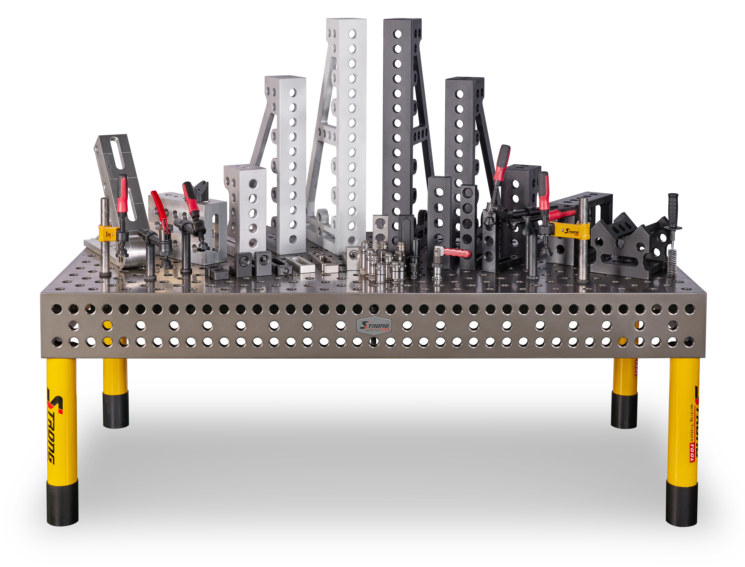

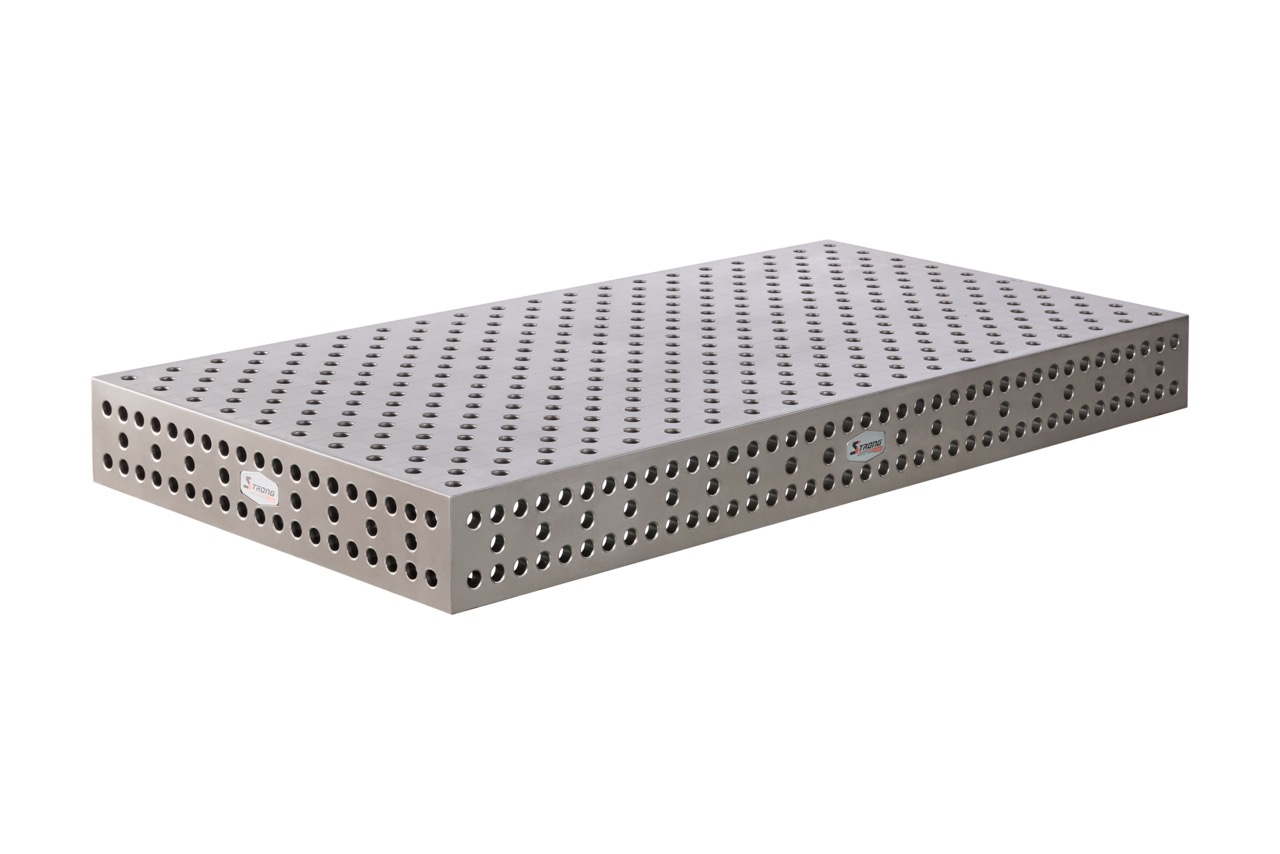

General/Profit/Expert Line 3D Tables


General line: Economical and practical, it can meet the needs of most welding jobs.

Profit line: Increase positioning area by 50%,meet complex positioning requests of workpieces.

Expert line: Increase positioning area by 4 times, suit for precision & high-demanding workpieces.








Customization requirementsStainless steel material; 3D table with slot; Solid tables.

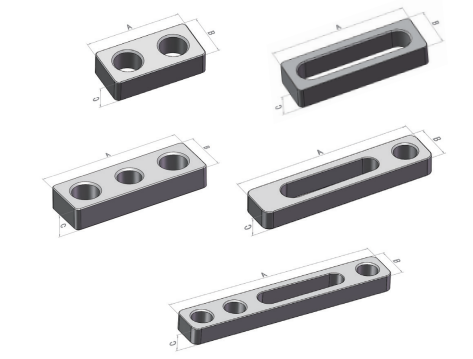

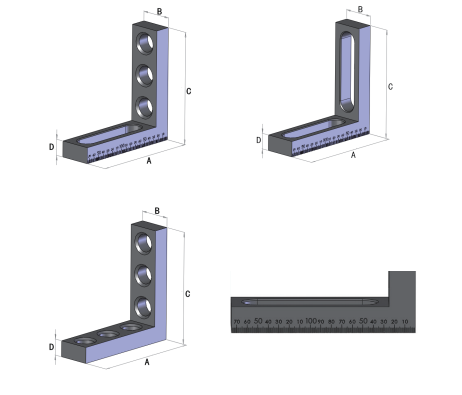

A Variety of Positioning Blocks and Stops


The positioning blocks and stops are available in various materials including alloy tool steel,

high-strength ductile iron, and high-strength aluminum alloy.

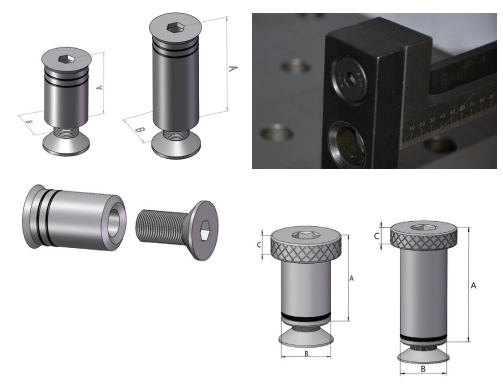

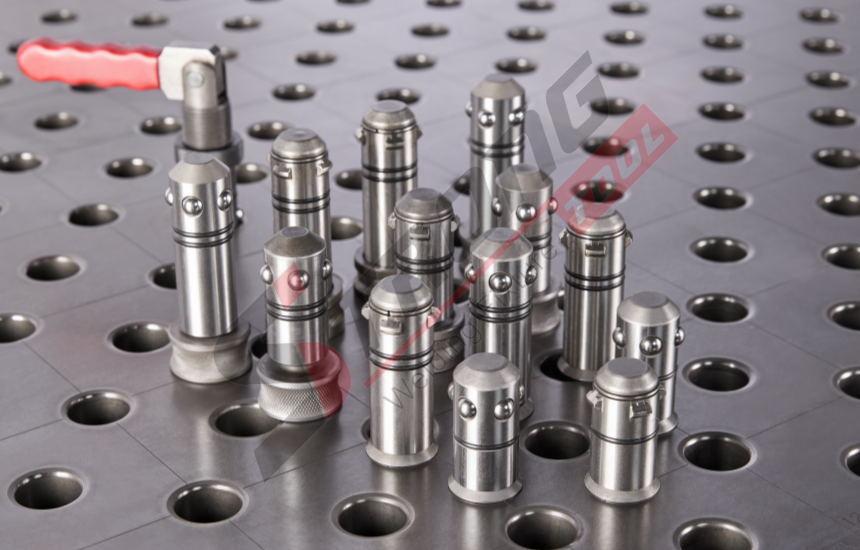

Unique Positioning Locking Pin


The STQ pin with a guiding groove has a high and even locking force, and its service life is

five times that of traditional locking pins.

The surface hardness of the pin body is HRC 55.

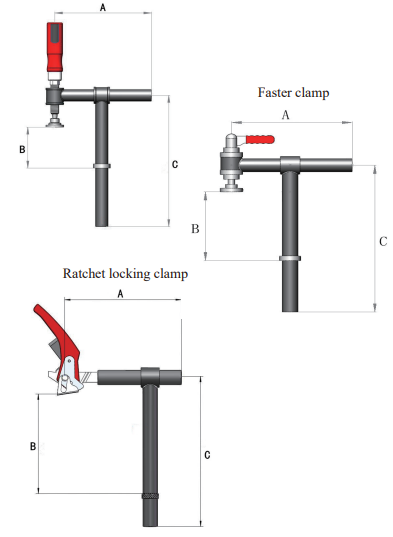

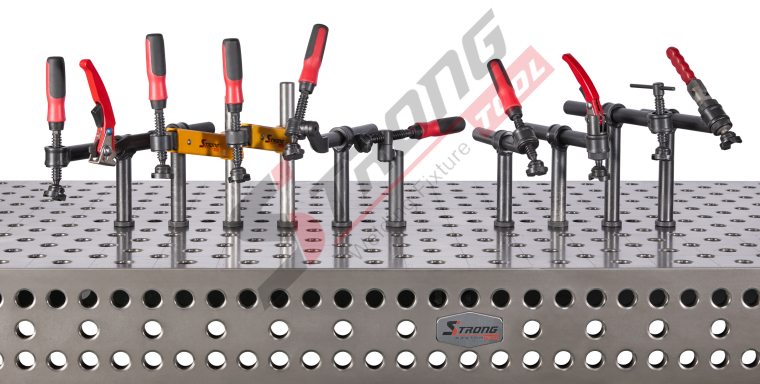

Extensive Clamp Selection


The ergonomic oval-shaped plastic and rubber composite handle provides a comfortable grip.

Various clamping methods, each with its own advantages, offer the best option in work.





Interchangeable across all system series.






Applications



Trusted by leading manufacturers in:



Automobile research and development



Aerospace structural component welding



Marine vessel assembly



Heavy machinery frame fabrication



Production of sheet metal enclosures



......
