Product Details

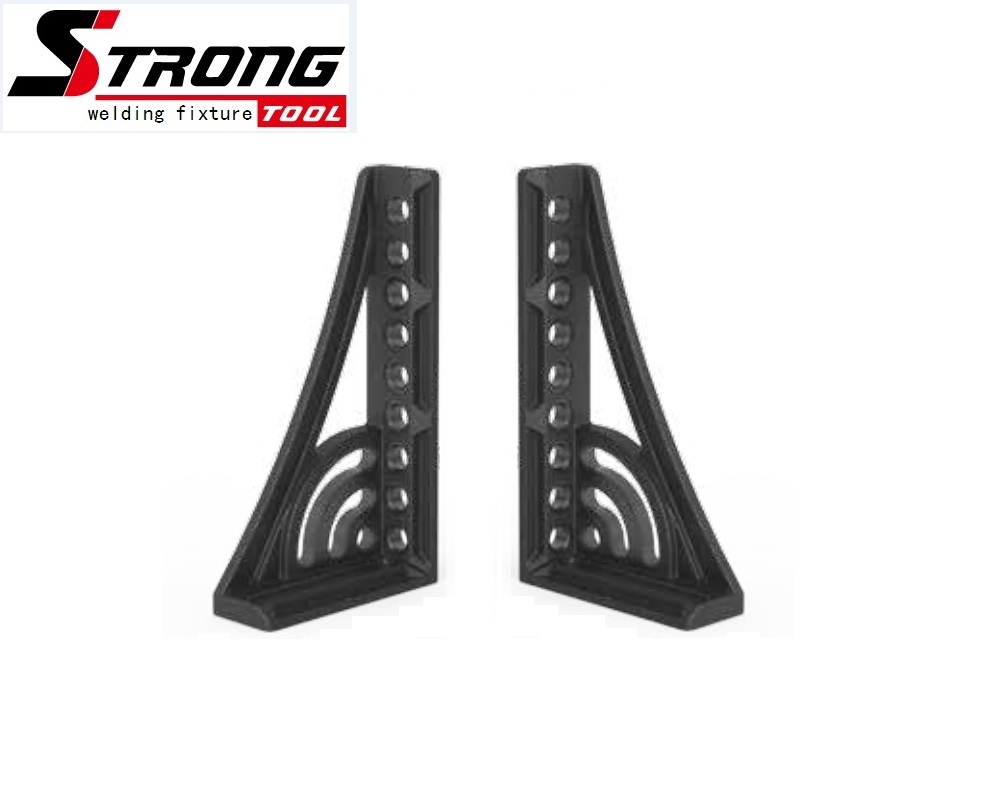

28 System-Customer Specification-Stop and Clamping Square

Description
 - Stop and clamping square.
 - Surface nitriding.

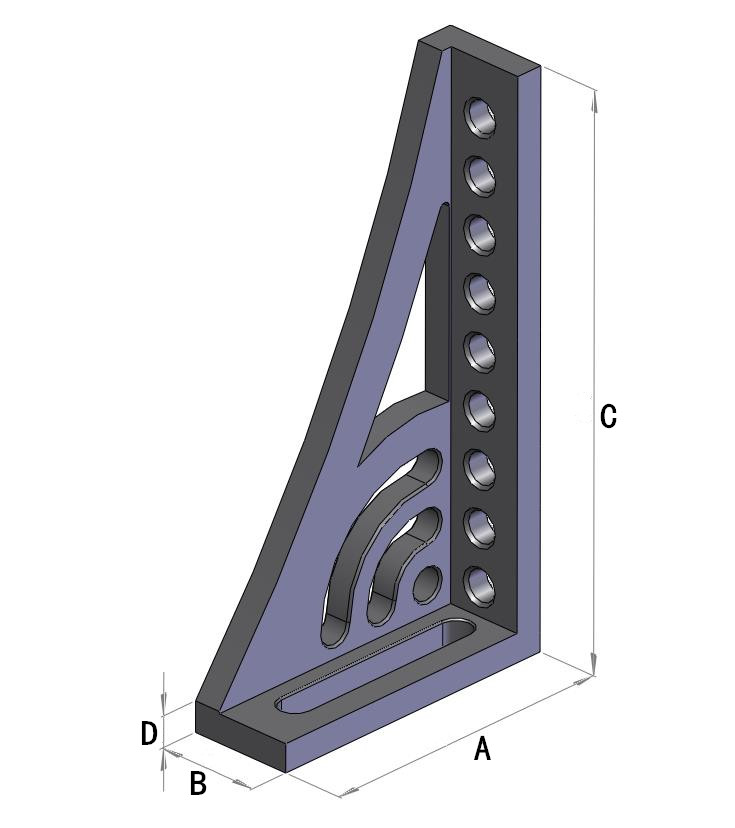

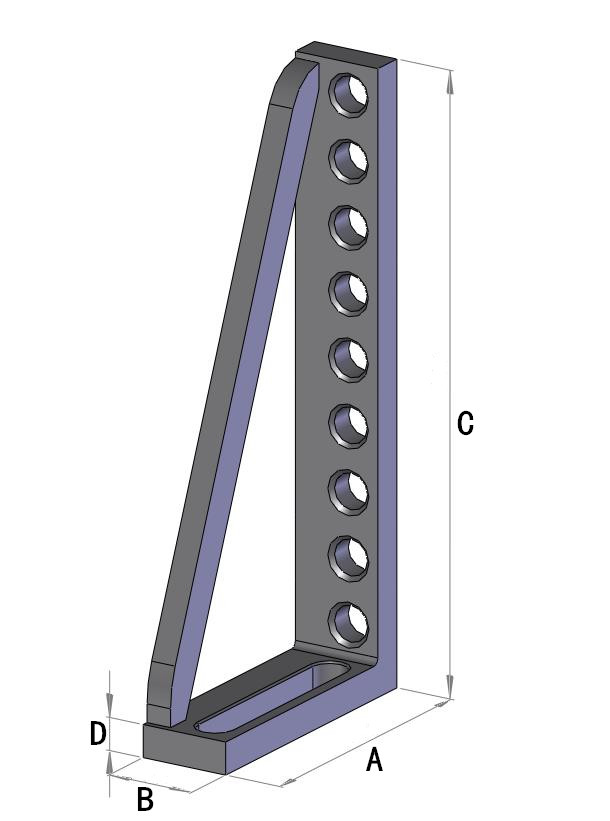

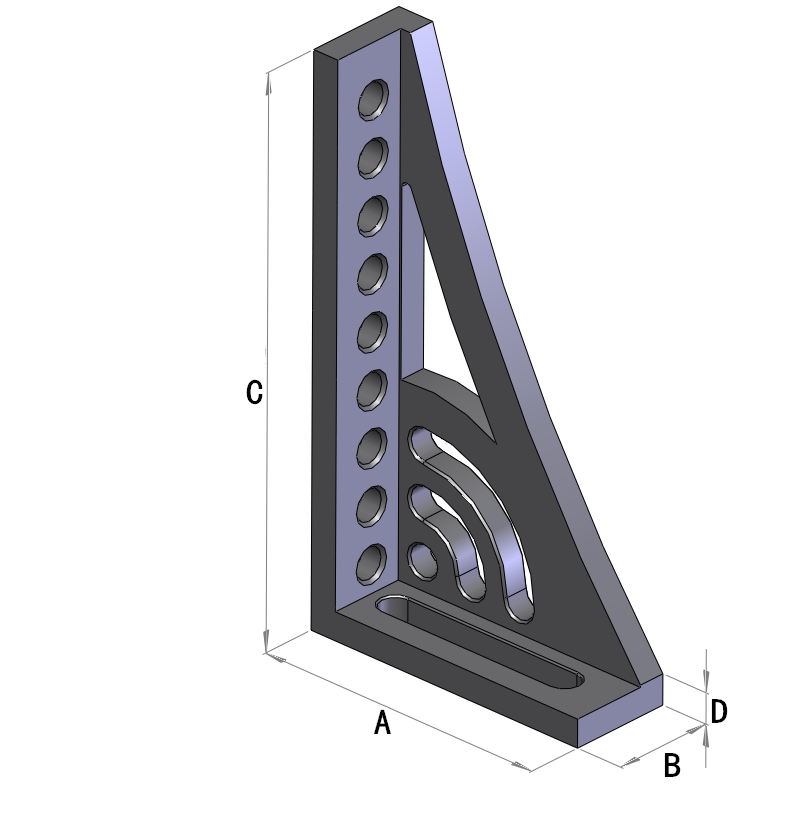

S28-30300-02428-30500-024
500角钢2-280162.N带标注.pngS28-30500-024

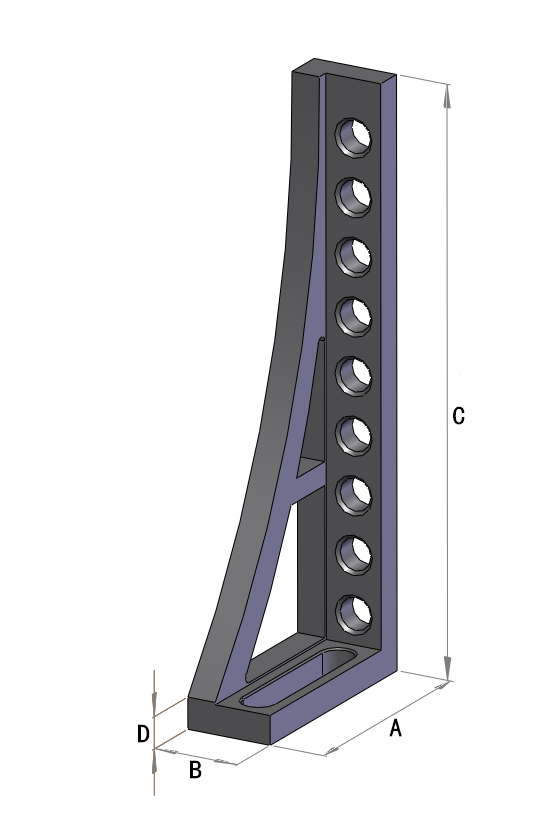

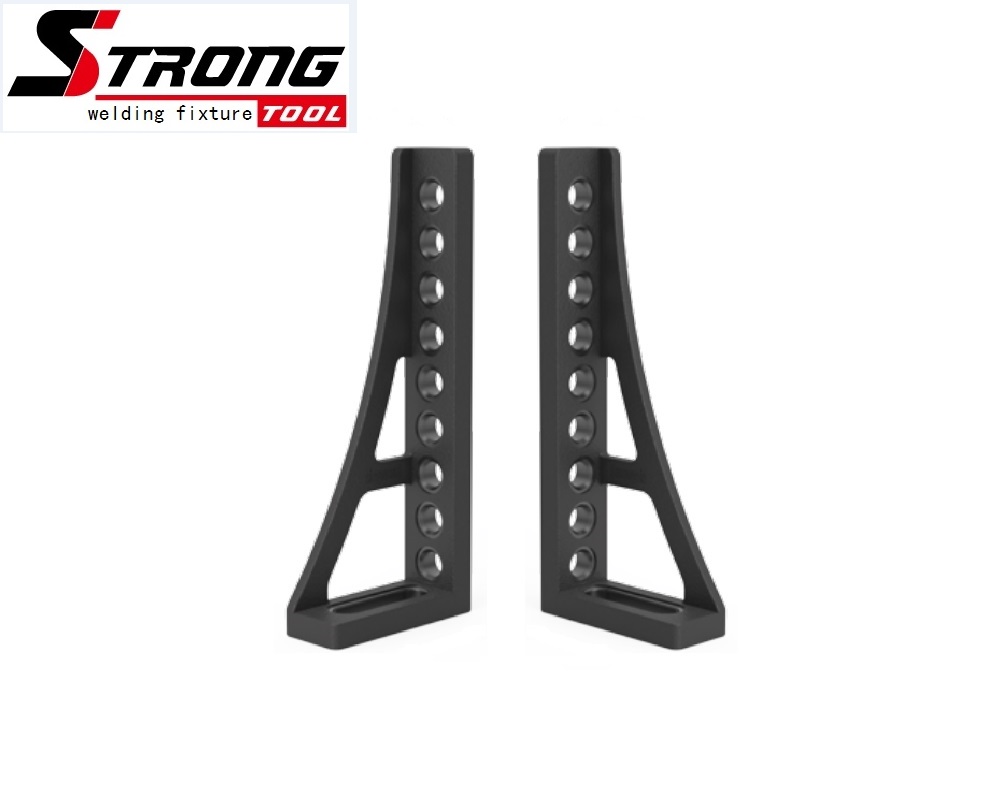

S28-30500-026/027

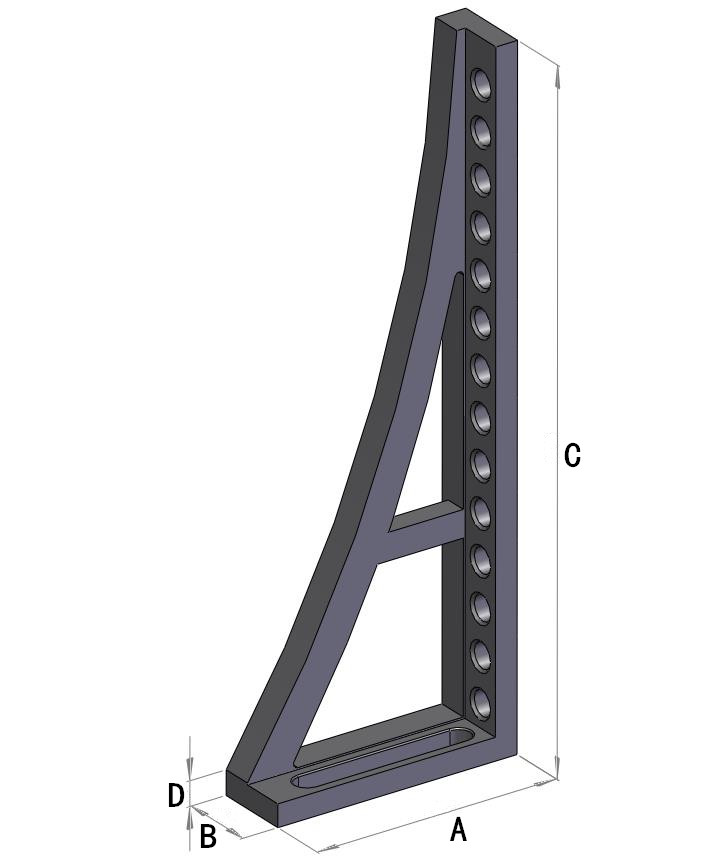

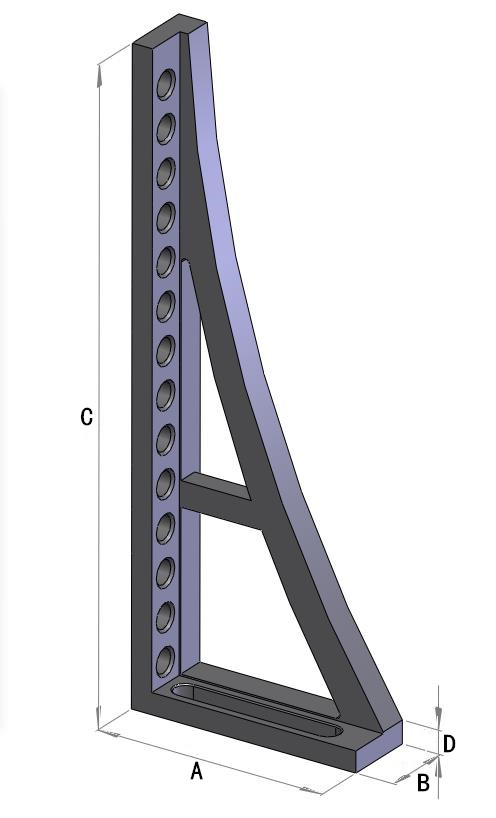

S28-30750-024/025


Description

A×B×C×D

Kg

Item no.

Stop and   clamping square 300G, nitrided

200×75×300×25

6.52

S28-30300-024

Stop and   clamping square L500, nitrided

200×75×500×25

9.7

28-30500-024

Stop and   clamping square 500G, nitrided

200×75×500×25

9.4

S28-30500-024

Stop square 500G   left, with rotation angle, nitrided

275×95×500×25

11.5

S28-30500-026

Stop square 500G   right, with rotation angle, nitrided

275×95×500×25

11.5

S28-30500-027

Stop and   clamping square 750G left, nitrided

275×85×750×25

13.6

S28-30750-024

Stop and   clamping square 750G right, nitrided

275×85×750×25

13.6

S28-30750-025
