Product Details

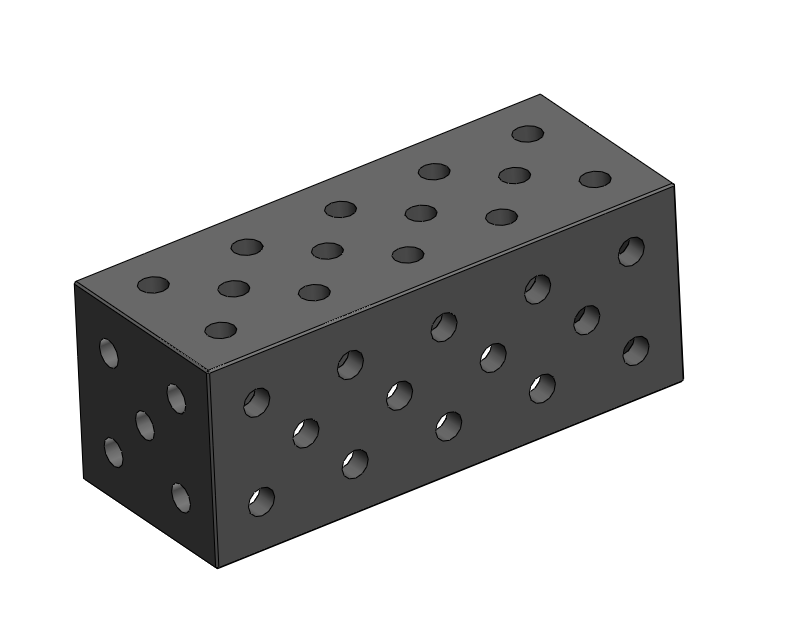

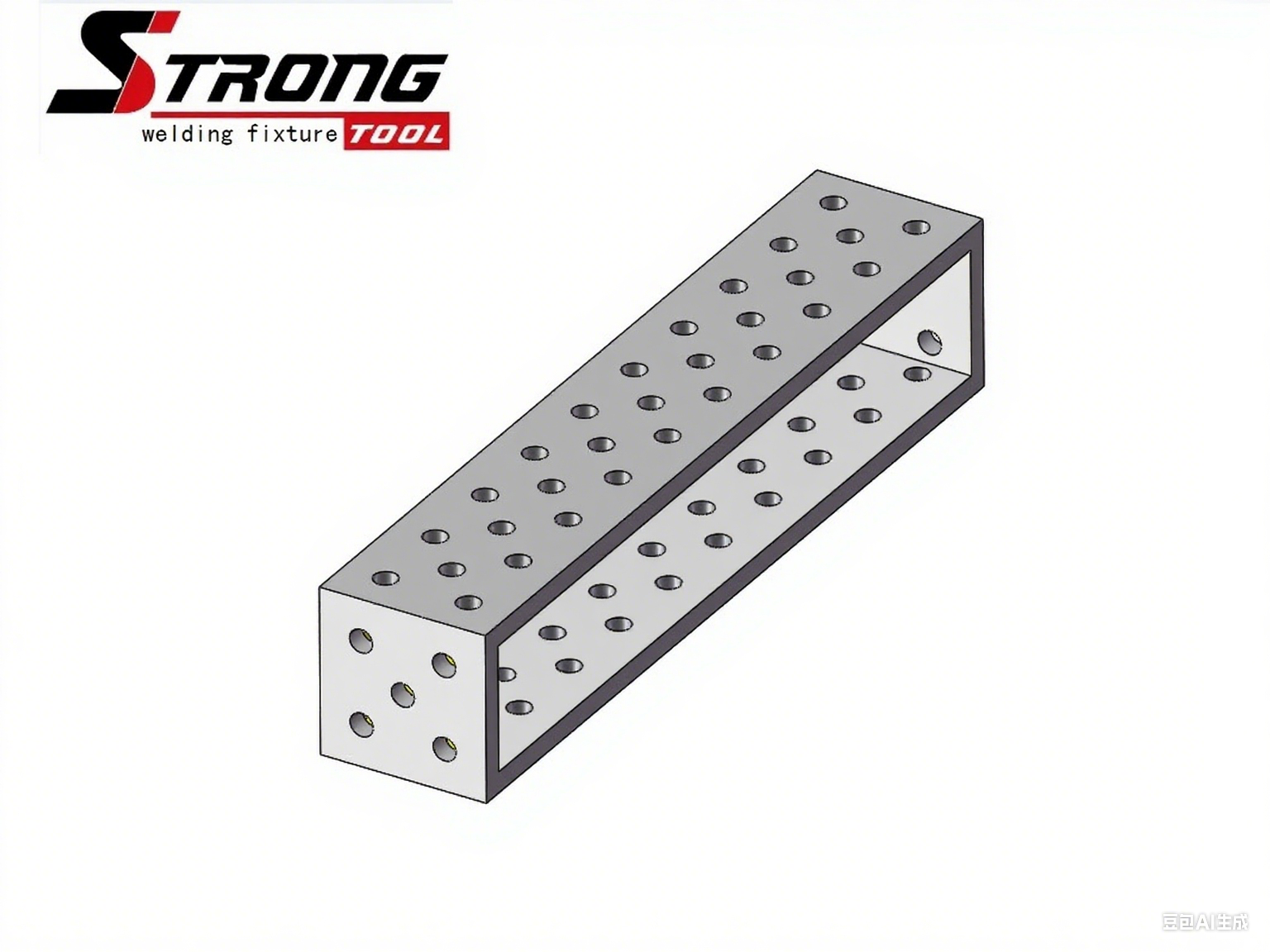

28 System-U-shape Block
-5 sides support surfaces. -Can be used for table extension, vertical positioning for large & heavy workpieces. When as cantilever frame, over 1000mm length need a table leg for support. When between two tables, from 2000mm length need a table leg for support. | ||
 |  | |
| Tool steel with super hardening, Stainless steel or aluminum alloy are available | |

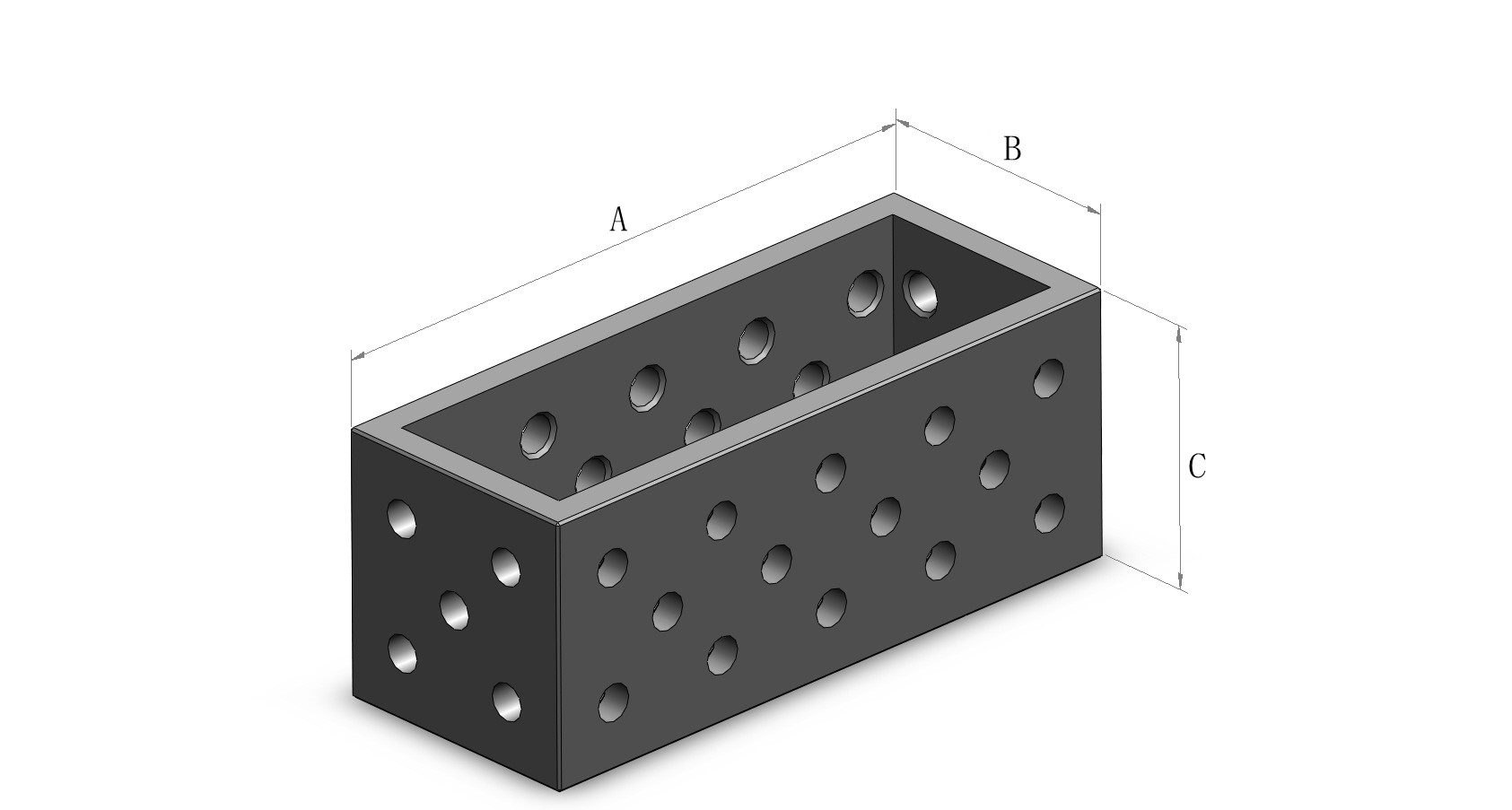

Description | A×B×C | Kg | Item no. |
U-shape Block 500×200 | 500×200×200 | 55 | 28-40050-000 |
U-shape Block 1000×200 | 1000×200×200 | 102 | 28-40100-000 |
U-shape Block 1200×200 | 1200×200×200 | 120 | 28-40120-000 |
U-shape Block 1500×200 | 1500×200×200 | 159 | 28-40150-000 |
U-shape Block 2000×200 | 2000×200×200 | 200 | 28-40200-000 |
U-shape Block 2400×200 | 2400×200×200 | 240 | 28-40240-000 |
U-shape Block 3000×200 | 3000×200×200 | 285 | 28-40300-000 |
U-shape Block 4000×200 | 4000×200×200 | 402 | 28-40400-000 |
U-shape Block 500×400 | 500×400×200 | 91 | 28-40050-001 |
U-shape Block 1000×400 | 1000×400×200 | 160 | 28-40100-001 |
U-shape Block 1200×400 | 1200×400×200 | 174 | 28-40120-001 |
U-shape Block 1500×400 | 1500×400×200 | 244 | 28-40150-001 |
U-shape Block 2000×400 | 2000×400×200 | 281 | 28-40200-001 |
U-shape Block 2400×400 | 2400×400×200 | 329 | 28-40240-001 |
U-shape Block 3000×400 | 3000×400×200 | 410 | 28-40300-001 |
U-shape Block 4000×400 | 4000×400×200 | 560 | 28-40400-001 |
Mounting Plate | 200×100×25 | 1.8 | 28-40000-200 |
Mounting Plate | 400×100×25 | 3.6 | 28-40000-400 |
