Bolt

Ball Bolt

Chat OnlineChat Online

TEL ：021-6568 3273

We chat：3dweldingtableEmail：1741002061@qq.com

Product Details

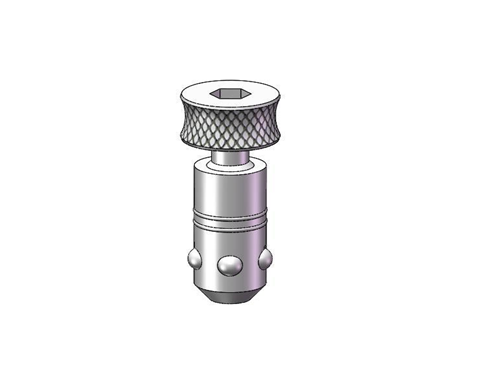

28 System-Ball Bolt


Description
 - Rely on high-strength steel ball positioning and     locking system holes.                                                   - Bolt body and hole fit accurately.
 - Lock or release with one hand.
 - Clamp by hex wrench SW14/SW8.                         - Bolt body is bearing steel material,urface HRC55.




Description

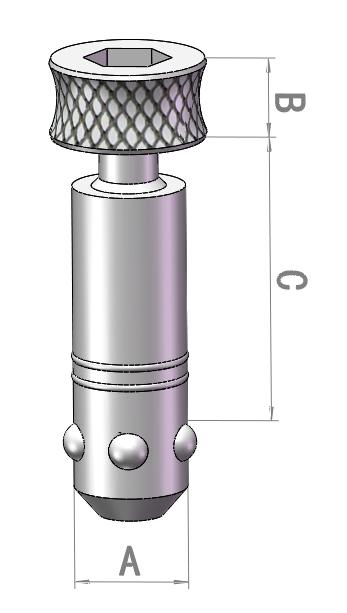

ΦA×B×C

Kg

Item no.

Ball Bolt short

28×20×(41-50)

0.6

28-60051-000

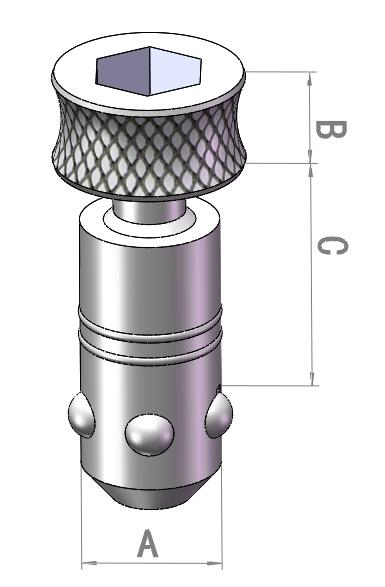

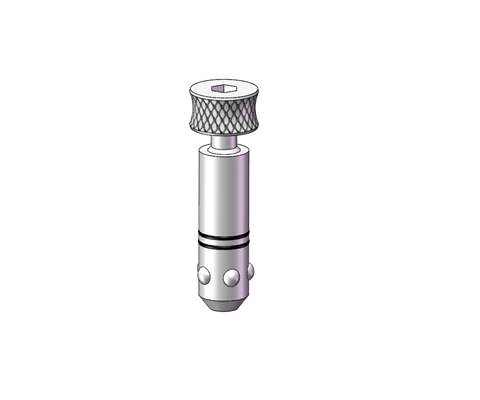

Ball Bolt long

28×20×(66-75)

0.7

28-60051-001

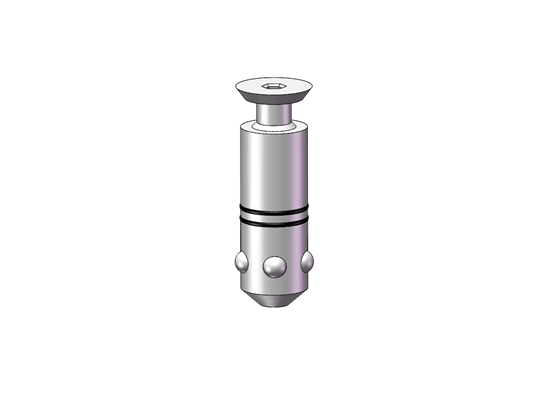

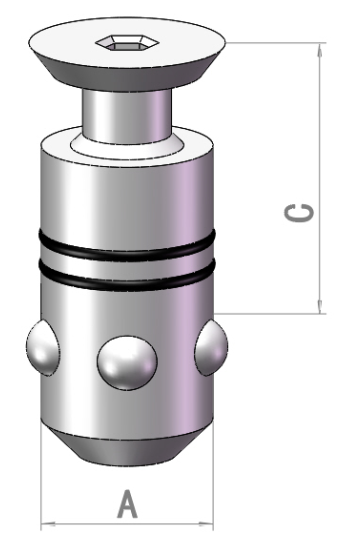

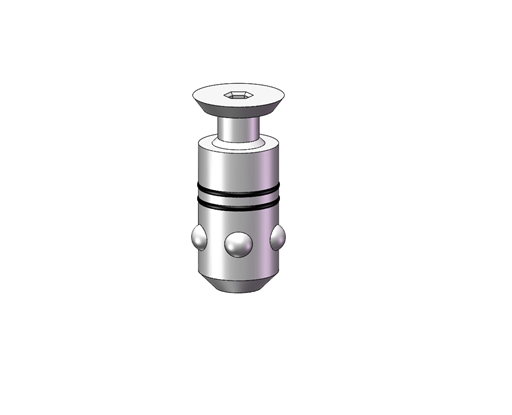

Ball Countersunk   Bolt short

28×31.6×(41-50)

0.4

28-60051-002

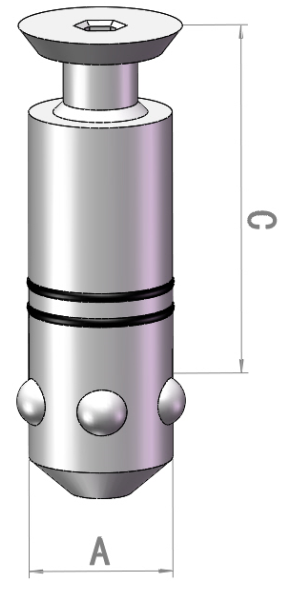

Ball Countersunk   Bolt long

28×31.6×(66-75)

0.5

28-60051-003
