Product Details
28 System-Standard Stop with Groove
 |  | Description -The grooves allow direct positioning of the right angle surface. |
 |  |

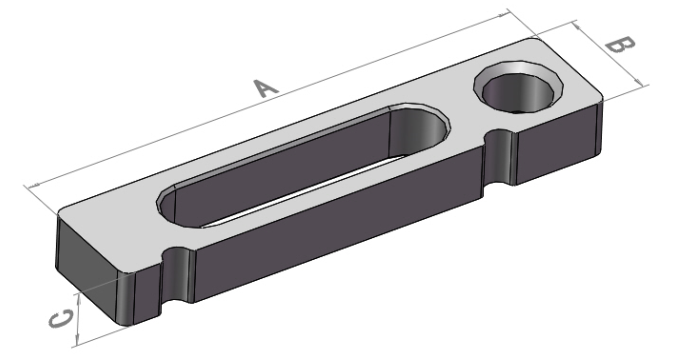

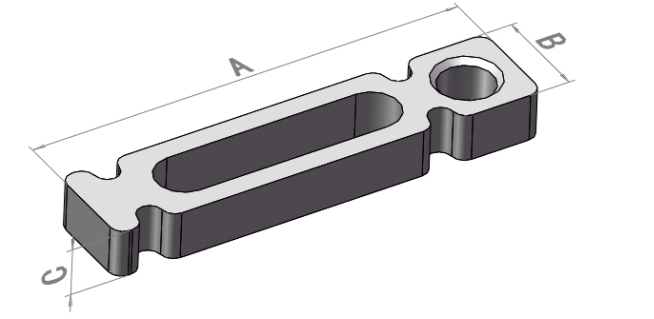

Dimension chain
Description | A×B×C | Kg | Item no. |
Standard Stop with groove 100, surface blackening | 100×50×25 | 0.6 | 28-50010-002 |
Standard Stop with groove 100, hardening | 100×50×25 | 0.6 | 28-50010-022 |
Standard Stop with groove 225, blackening | 225×50×25 | 1.32 | 28-50022-004 |
Standard Stop with groove 225, hardening | 225×50×25 | 1.32 | 28-50022-024 |
Standard Stop with groove 225, super hardening | 225×50×25 | 1.32 | 28-50022-034 |
Standard Stop with groove 225, Al alloy | 225×50×25 | 0.4 | 28-50022-044 |
Standard Stop with groove 225, stainless | 225×50×25 | 1.32 | 28-50022-054 |
Standard Stop with groove and scale 225, blackening | 225x50x25 | 1.33 | 28-50022-102 |
Standard Stop with groove and scale 225, hardening | 225x50x25 | 1.33 | 28-50022-122 |
Standard Stop with groove and scale 225, Al alloy | 225x50x25 | 0.4 | 28-50022-142 |

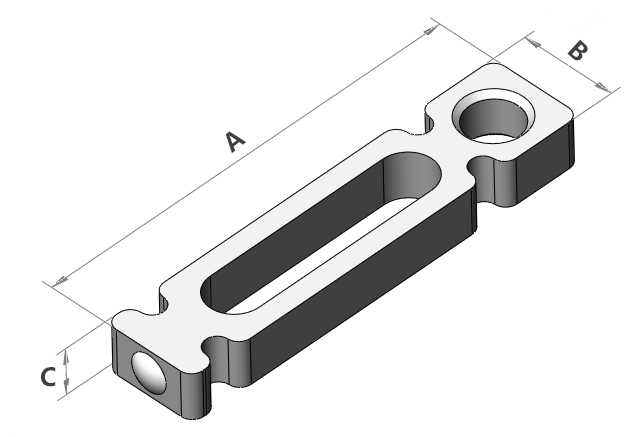

Standard Stop with clamp ball, hardening | 225×50×25 | 1.32 | 28-50022-025 |
Standard Stop with clamp ball, Al alloy | 225x50x25 | 0.4 | 28-50022-045 |
