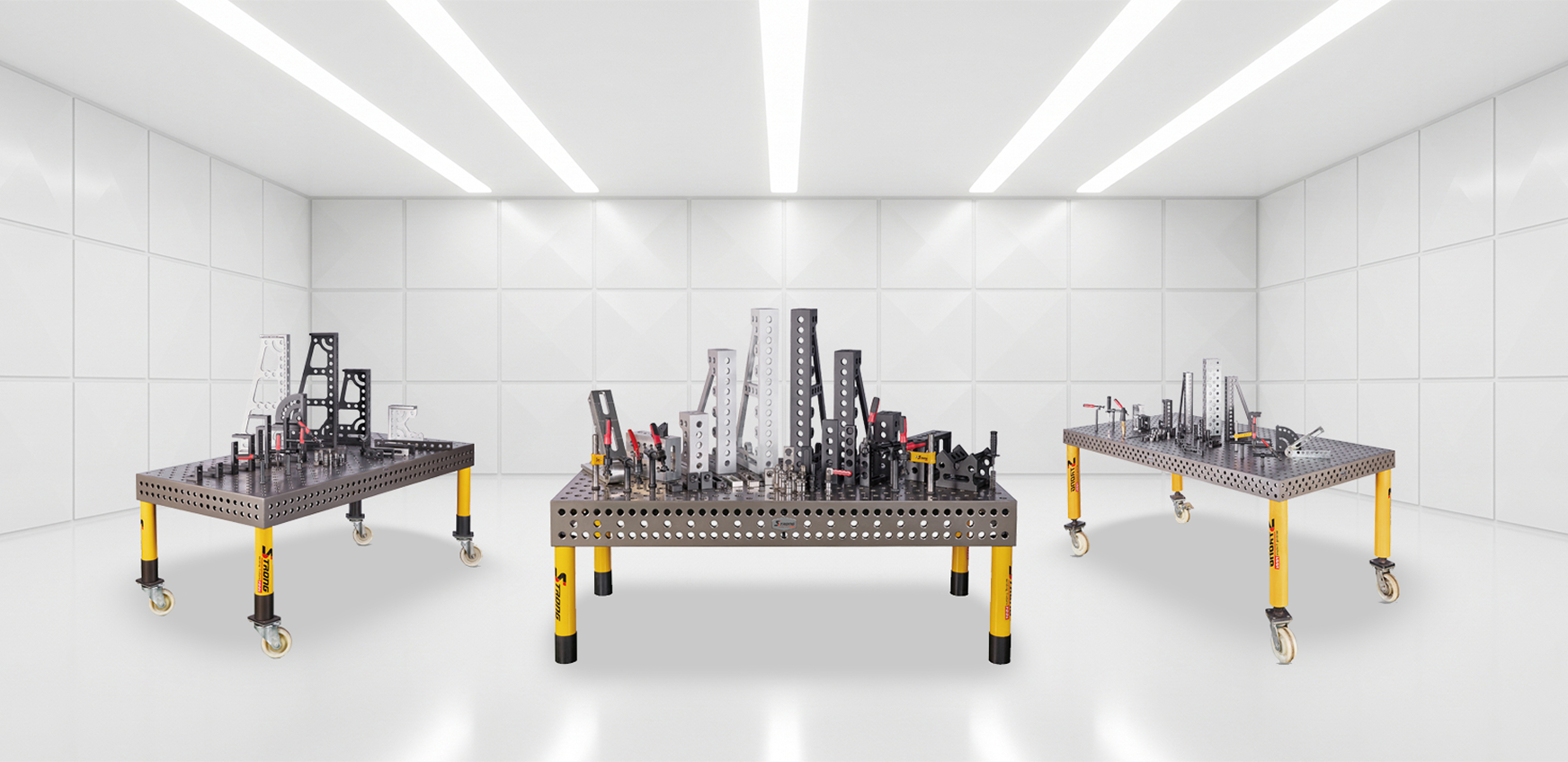

StrongTool is a professional self-owned brand built upon nearly 30 years of 3D flexible fixturing expertise. As an ISO 9001:2015 certified company, we are committed to delivering competitive and specialized welding equipment solutions to customers worldwide.
Why Choose StrongTool?
1. Complete & Diverse Product Matrix
Full Range & Custom Products: As an OEM manufacturer, we offer complete Φ28, Φ22, and Φ16 series hole-type workbenches with a comprehensive range of accessories, alongside custom slot-type and combination tables.
Rich Material Options: Workbenches are available in Q355, high-strength alloy steel, and stainless steel; accessories are available in lightweight aluminum and workpiece-safe nylon.
High Interchangeability & Flexibility: The modular architecture supports rapid reconfiguration. Hundreds of positioning modules, clamps, and locking pins enable diverse tooling combinations, significantly reducing changeover time.
2. Superior Quality & Industrial Durability
IT7 Precision Machining: Fully compliant with ISO 9001:2015 standards, strict dimensional tolerances are maintained throughout all manufacturing steps, ensuring smooth assembly and consistent clamping accuracy.
HRC 60 Hardened Surface: High-alloy steel tables are treated with advanced hardening processes, achieving surface hardness up to HRC 60 for high deformation resistance, wear resistance, and corrosion resistance.
3. Your Trusted Long-Term Partner

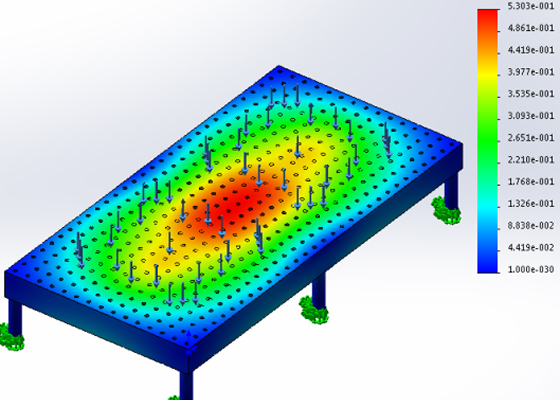

Science-Backed R&D: Backed by nearly 30 years of industry experience, all table designs are validated through Finite Element Analysis (FEA) and simulation testing, optimizing load capacity to ensure long-term structural and precision stability.

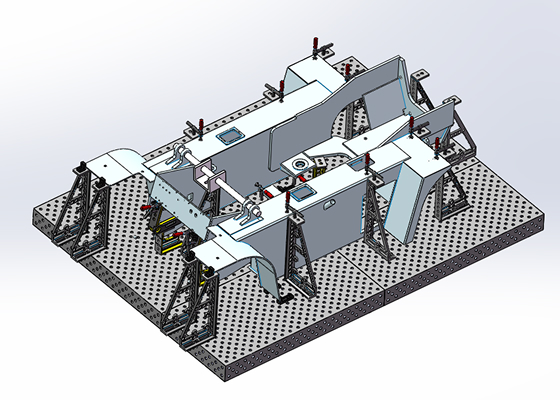

Full-Process Application Expertise: Beyond hardware, we provide comprehensive solutions ranging from workpiece clamping sequence and welding process to workshop layout planning.
Comprehensive Service Support: Equipment installation guidance, on-site commissioning, and operator training services help your team achieve efficient production quickly.

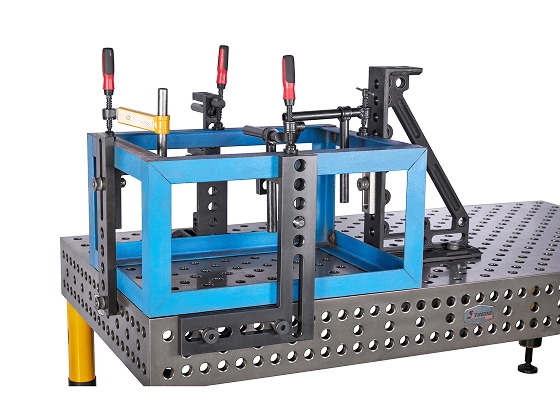

Product Introduction & System Selection
Workbench + Grid Pattern + Table Type + Support System + Core Accessories = Your Complete Solution
STEP 1: Select Bore Size (Defines Load Capacity)
ExampleSystem SpecWorkpiece Features & LoadTypical Applications

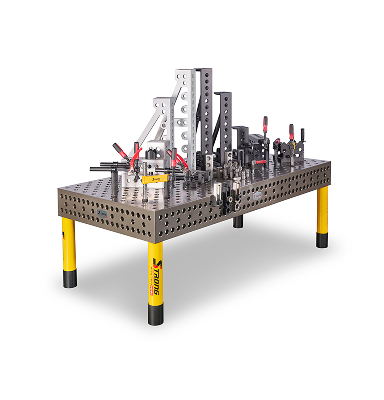

Heavy Duty (Φ28)Thick plate welding, high thermal stress, large-tonnage or extra-long structural partsExcavator booms, truck chassis frames, rail vehicle underframes, large steel structures

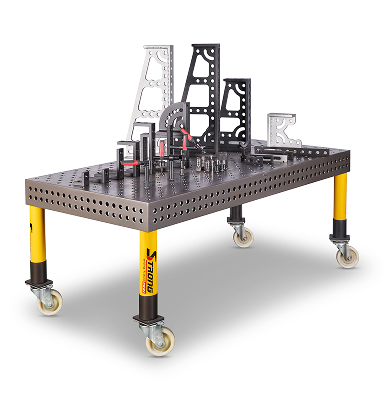

General Purpose (Φ22)Covers medium-small parts, suitable for ~80% of welding scenariosAuto parts, medium machinery components, complex frame assemblies, pipe & valve combinations

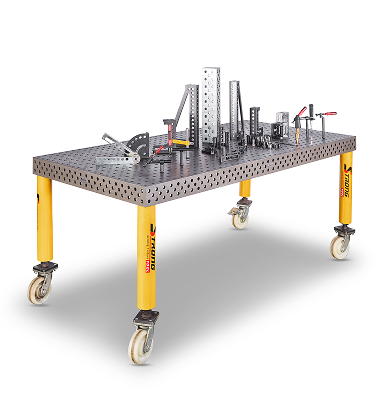

Light Duty (Φ16)Sheet metal, small lightweight parts requiring high precisionElectronics enclosures, thin-wall sheet metal, precision instrument housings, lightweight tubes, robotic welding prototyping
Standard grid (100×100mm): Most common layout, suitable for the majority of standard workpieces
Optimized grid (100×100mm): Diagonal grid, 1.5x increased positioning area
Fine grid (50×50mm): 4x positioning area, designed for complex or small parts requiring precise adjustment
Φ16 Options
Standard grid (50×50mm): High-density layout for small-part assembly boundaries
Optimized grid (50×50mm): Further increased positioning area for dense fixturing of fine workpieces
STEP 3: Select Table Type & Material (Defines Service Life)
Table TypeMaterialSurface HardnessDescription
BasicCarbon Steel Q355—Basic non-hardened table for intermittent welding with limited budget.

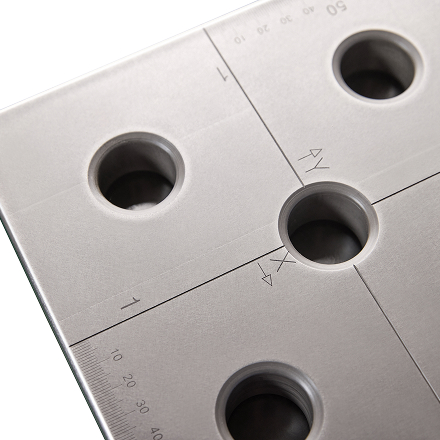

DimensionedCarbon Steel Q355—Precision mm-scale markings on all four sides for quick visual alignment.
HardenedCarbon Steel Q355HRC 35Advanced surface hardening for significantly improved wear and impact resistance.
Dimensioned & HardenedCarbon Steel Q355HRC 35Combines HRC 35 hardening with four-side mm-scale markings for durability and efficiency.
Super-HardenedHigh-Performance Alloy SteelHRC 60Upgraded base material. Extreme hardening with precision mm-scale markings. Maximum deformation resistance, anti-spatter, ideal for severe duty cycles.
Stainless Steel304 Stainless Steel—Special material with four-side mm-scale markings. Designed for aluminum and stainless steel workpieces where iron contamination must be avoided.

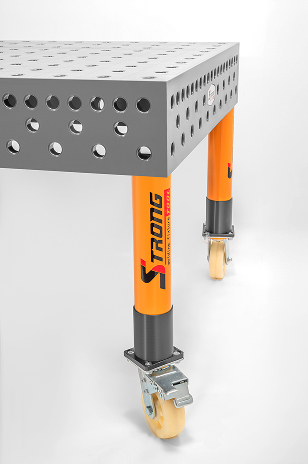

STEP 4: Select Support System (Defines Working Height)
Standard / Anchor legs: Static capacity > 5 tons per leg, ±30mm height adjustment. Ideal for permanent stations.
Telescopic legs: Height adjustable (e.g. 550-900mm), capacity > 3 tons. Adapts to large assembly heights.
Swivel castor legs with brake: Max static load 500kg per leg. High mobility for flexible workshop layout.
Stepless adjustable lift leg (NEW): 300kg capacity per unit, stepless adjustment (350-485mm), interchangeable top flange, castor or foot.
Heavy-duty hydraulic lift stations: Capacity from 2 to 4.5 tons. Industrial hydraulic pump and electric control for stable platform lifting.
STEP 5: Select Functional Core Accessories (Complete Your Clamping System)

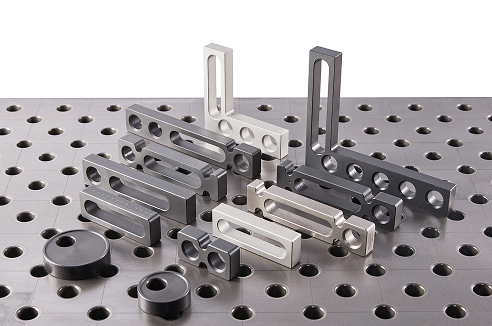

Positioning Elements
Standard slotted stops
4-side / 3-side / 2-side angle brackets
Eccentric stops

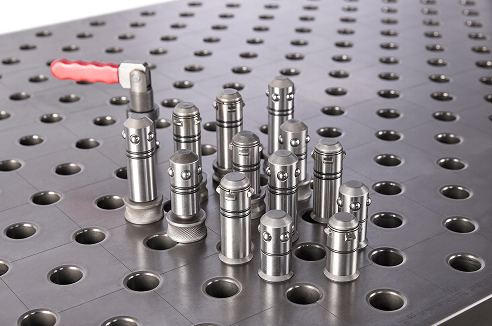

Locking Elements
Patented ball-type quick-lock pins (various lengths, flush or protruding)

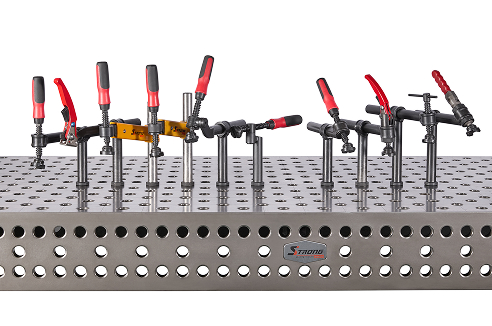

Clamping Elements
180°/45°/90° universal screw clamps (ratchet or quick-grip handle)
Vertical / horizontal quick clamps

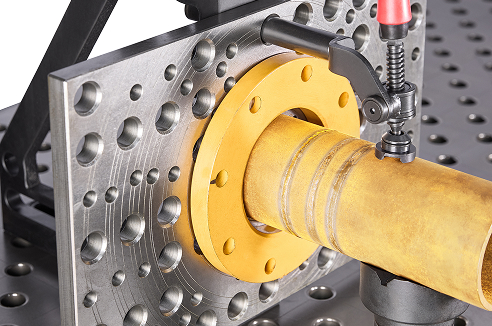

Round Tube Supports
Cross V-block series (90°/120°/130° angles, in high-strength steel, stainless steel or scratch-resistant nylon)
